Aluminium Alloy 2198 ams 4412a Sheet & Plates, Aluminium Alloy 2198 Temper t8, t3s and t3s1 Sheet & Plates, Aluminium Sheet & Plates 2198.
2198 ams 4412a Sheet & Plates Aluminium Alloy, Aluminium Sheet & Plates 2198, Aluminium Alloy 2198 Temper t8, t3s and t3s1 Sheet & Plates, Aluminium Sheet & Plates 2198.

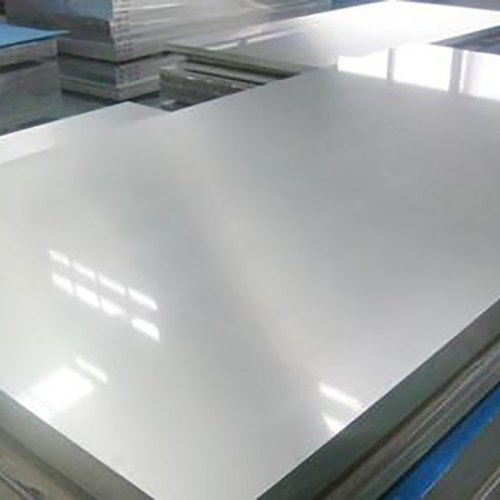

Metal Ministry Inc. provide Aluminium Alloy 2198 Sheet & Plates manufacturer, Aluminium Sheet & Plates 2198-T8 is a low density aluminium-based alloy, offering high damage tolerance, high static properties, excellent fatigue and corrosion resistance. Owing to improved corrosion resistance, this alloy is suitable for application as bare material. Leveraging aluminium’s infinite recyclability without property losses, Aluminium 2198 can be repeatedly recycled.
Metal Ministry Inc. are the most Aluminium Alloy 2198 ams 4412a Sheet & Plates, Aluminium Alloy 2198 Temper t8, t3s and t3s1 Sheet & Plates, Aluminium Sheet & Plates 2198.
Metal Ministry Inc. Provides Aluminium Alloy 2198 ams 4412a Sheet & Plates, Aluminium Alloy 2198 Temper t8, t3s and t3s1 Sheet & Plates, Aluminium Sheet & Plates 2198.
Aluminium Sheet & Plates 2198 is available in thin gauges. Due to its high damage tolerance combined with high static properties, it is used for fuselage sheets and other inner structures. Thanks to lower density and increased stiffness, considerable weight reductions can be achieved on such structures, if compared to incumbent alloys. In addition, Aluminium Sheet & Plates 2198 offers excellent corrosion performance, in both exfoliation and stress corrosion, that leads to reduced maintenance costs.
| Aluminum 2195 Sheet & Plate Specifications | AMS 4412A and MMPDS |
| Tempers | T84, T3S or T3S1. |
| AMS | AMS 4412A and MMPDS |
| Aluminum 2198 Sheets/Plates Thickness | 1.6 to 6.3 mm (0.063 to 0.249 in) |
| Si | 0.08 max |
| Fe | 0.10 max |
| Cu | 2.9 - 3.5 |
| Mn | 0.50 max |
| Mg | 0.25 - 0.80 |
| Zn | 0.35 max |
| Ti | 0.10 max |
| Ag | 0.10 - 0.50 |
| Li | 0.8 - 1.1 |
| Zr | 0.04 - 0.18 |
| Thickness mm (in) | DIR | 1.6 ≤ th ≤ 3.2 mm (0.063 - 0.125 in) |
3.2 ≤ th ≤ 6.3 mm (0.125 - 0.249 in) |
|
| Tensile strength MPa (ksi) | LT | min | 462 (67) | 476 (69) |
| Yield strength MPa (ksi) | LT | min | 407 (59) | 427 (62) |
| E (tension) GPa (Msi) | L Typical 76.5 (11.1) | |||
| Stress Corrosion Cracking MPa (ksi) ASTM G47 |
LT | max | 350 (51) | |
| Density g/cm³ (lb/in³) | Typical | 2.7 (0.098) | ||
2198 T8 can be welded using conventional processes (e.g. Laser Beam Welding) as well as Friction Stir Welding technologies. Metal Ministry Inc. patented recycling process permits 100% recycling of off-cuts and machining chips resulting from the manufacturing process.
| Aluminum 2198 T8 Sheet & Plates in Oil & Gas Exploration |
| Aluminum 2198 T8 Sheet & Plates in Shipbuilding |
| Aluminum 2198 T8 Sheet & Plates in Petrochemical |
| Aluminum 2198 T8 Sheet & Plates in Nuclear Power Plant |
| Aluminum 2198 T8 Sheet & Plates in Food & Dairy Industries |
| Aluminum 2198 T8 Sheet & Plates in Chemical Industries |
| Aluminum 2198 T8 Sheet & Plates in Pharmaceutical Industries |
