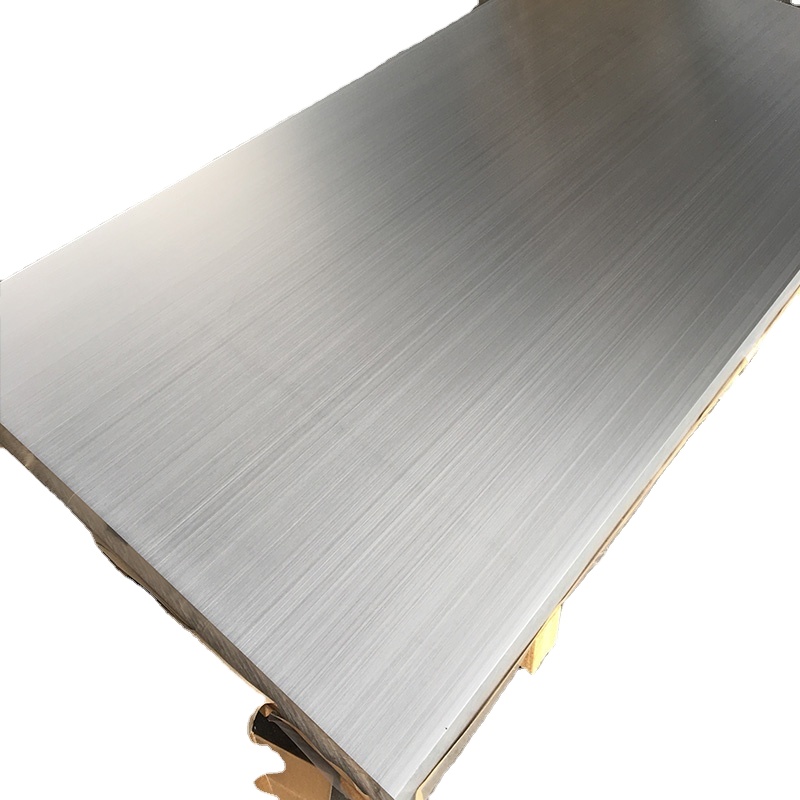

Aluminum Alloy 2195 includes T84, T8 and T82 tempers, UNS A92195 Sheet & Plates, Aluminum 2195 Sheet & Plates AMS 4472 and AMS 4474.
Aluminum 2195 Sheet & Plate AMS 4472 and AMS 4474, Aluminum Alloy Sheet & Plates 2195 Tempers T84, T8 and T82, UNS A92195 Sheet & Plates.
Metal Ministry Inc. provide Aluminium Alloy 2195 Sheet & Plates manufacturer, 2195 in T84, T8 and T82 tempers is a low density aluminium-based alloy, developed to provide a high-strength, high damage tolerance and Friction Stir Weldable alternative to currently available incumbent plate alloys. It presents an excellent balance of high tensile/compressive strength, fracture toughness and Stress Corrosion Cracking resistance combined with a 5% lower density and 8% higher modulus of elasticity. Leveraging aluminium’s infinite recyclability without property losses, 2195 can be repeatedly recycled.
Metal Ministry Inc. are the most competitive manufacturers as they produce quality products and provide essential services required for assembling and installing. Our company supply only best quality aluminium alloy 2195 sheets and plates. Aluminum 2195 Sheet & Plate AMS 4472 and AMS 4474, Aluminum Alloy Sheet & Plates 2195 Tempers T84, T8 and T82, UNS A92195 Sheet & Plates, The specifications of these products are changed as per need of applications. We use Aluminium alloy 2195 because it is heat-treatable aluminum alloy with copper as the primary alloying element. It is malleable when in the fully soft, annealed temper and can be heat-treated to high strength levels after forming. Aluminium Alloy 2195 contains aluminium, iron, chromium, silicon, zinc and titanium with maximum amount. These sheets has ultimate tensile strength, yield strength and elongation.
Metal Ministry Inc. Provides 2195 aluminum is a 2000-series aluminum alloy: the main alloying addition is copper, and it is formulated for primary forming into wrought products. Cited properties are appropriate for the T8 temper. To achieve this temper, the metal is solution heat-treated, strain hardened, then artificially aged. 2195 is the Aluminum Association (AA) designation for this material. In European standards, it will be given as EN AW-2195. Additionally, the UNS number is A92195.
2195 is produced in accordance with several customer specifications. It is also covered by AMS 4472 and AMS 4474. A and B-values and a complete set of design allowables was included in MMPDS-07. Material Safety Data Sheet are available on demand.
| Aluminum 2195 Sheet & Plate Specifications | AMS 4472 and AMS 4474 |
| Tempers | T84, T34, T8 and T82 |
| AMS | AMS 4472 & AMS 4474 |
| Aluminum 2195 Sheets/Plates Thickness | 3.18 to 50.8 mm (0.25 to 2.0 in). |
| Si | 0.12Max |
| Fe | 0.15Max |
| Cu | 3.70-4.30 |
| Mn | 0.25max |
| Mg | 0.25-0.80 |
| Ag | 0.25-0.80 |
| Li | 0.80-1.2 |
| Zr | 0.08-0.16 |
| Gauge mm (in) | DIR | Test Temp *C (*F) | Tensile Strength MPa (Ksi) | Yield strength Mpa (ksi) | Elongation (%) | Toughness MPavm (KsiVin) |
E-Modulus GPa(msi) |
Density g/cm3 (Ib/in) |
6.35 - 12.7 (0.25 - 0.5) |
L | 20 (68) | 615(89) | 580 (84) | 9 | 40 (36.4) | 78(11.3) | 2.7(0.097) |
| LT | 20 (68) | 600 (87) | 556 (82) | 11 | 40 (36.4) | |||
| 45 | 20 (68) | 525 (76) | 490 (71) | 12 | 35 (31.85) | |||
| L | -196 (-321) | 695 (101) | 640 (93) | 11 | 45 (40.9) | |||
| LT | -196 (-321) | 715 (104) | 635 (92) | 8 | 42 (38.2) | |||
| 45 | -196 (-321) | 680 (99) |
600 (87) | 10 | 38 (34.6) | |||
38-50 (1.5 - 2.0) |
L | 20 (68) | 555(80) | 530 (77) | 9 | 37 (33.7) | 78(11.3) | 2.7(0.097) |
| LT | 20 (68) | 575 (83) | 530 (77) | 8 | 35 (31.8) | |||
| 45 | 20 (68) | 560 (81) | 505 (73) | 9 | ||||
| ST | 20 (68) | 595 (86) | 500 (72) | 3.5 | ||||
| L | -196 (-321) | 695 (101) | 640 (93) | 11 | 40 (36.4) | |||
| LT | -196 (-321) | 715 (104) | 635 (92) | 8 | 35 (31.8) | |||
| 45 | -196 (-321) | 680 (99) |
600 (87) | 10 | ||||
| ST | -196 (-321) | 775 (112) | 600 (87) | |||||
2195 T84 can be machined using current high speed
machining technology, with minimal distortion thanks
to its low level of residual stresses. Optimization of
the thermomechanical processing yields low residual
stresses in 2195. It can be easily chemically
milled and is compatible with current surface treatment.
Constellium patented recycling process permits 100%
recycling of off-cuts and machining chips resulting
from the manufacturing process.
Temper:
T84 temper is obtained through a conventional one step
aging treatment, preceded by a moderate level of cold
work. Artificial aging is optimized to provide a good
balance of static properties, fracture toughness with
excellent stress corrosion resistance. Material can also be
supplied in a very formable T34 temper. After forming, end
user can convert parts or components to T84 condition.
Applications: 2195 plates are successfully used for both
cryogenic and non-cryogenic applications. Low density,
high stiffness, very high strength, good damage tolerance
make this plate product a very attractive choice for
direct and eng
| Aluminum 2195 T84 Sheet & Plates in Oil & Gas Exploration |
| Aluminum 2195 T84 Sheet & Plates in Shipbuilding |
| Aluminum 2195 T84 Sheet & Plates in Petrochemical |
| Aluminum 2195 T84 Sheet & Plates in Nuclear Power Plant |
| Aluminum 2195 T84 Sheet & Plates in Food & Dairy Industries |
| Aluminum 2195 T84 Sheet & Plates in Chemical Industries |
| Aluminum 2195 T84 Sheet & Plates in Pharmaceutical Industries |
